Part Serial Number Lookup

	Product Family	Part Number	Part Description	Visual (double click for larger view)	Example Serial Number	Notes	Notes2
	Collaboration powered by Smartsheet   |   Report Abuse

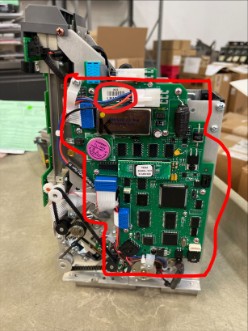

1	FastFare	D22597-0001 OR D22597-0004	Fast Fare Trim -Fast fare trim board		TCB04037NO
2	FastFare	D23130-0005	Fast Fare trim - Motor Control board		MC176207

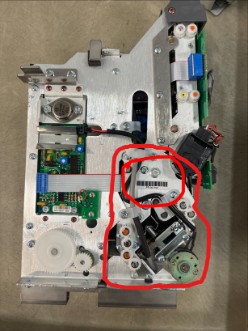

3	FastFare		Fast Fare Trim -Fast fare trim board with conveyer assembly
4	FastFare	D22188-0002	Fast Fare Trim - Printer		PR 067164

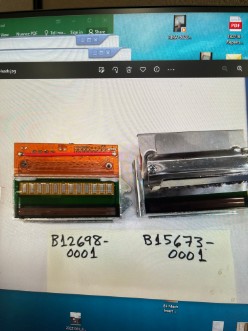

5	FastFare	B15673-0001 (with cover) B12698-0001 (without cover)	Fast Fare Trim - Printer Head		None		Printer head sub-components
6	FastFare	D21126-0007	Fast Fare Trim - logic main board		LB182554
7	FastFare	C12675-0003	Fast Fare Trim - power supply		TP0686639510019

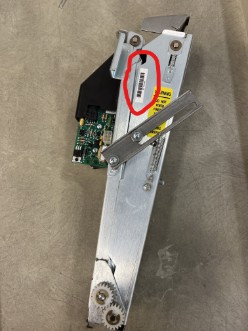

8	FastFare	D23696-0010	Fast Fare - Bill transport assembly		BT 121043

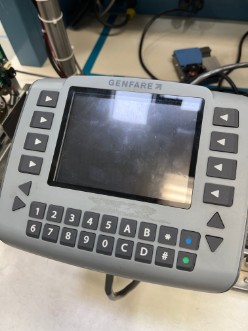

9	FastFare	D22832-0001	Fast fare - OCU		OC040851 (behind unit)
10	FastFare	D31000-0001	Fast fare - (NEW) OCU		OCU002010 (behind unit)

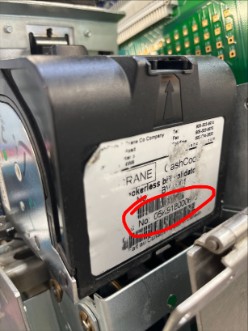

11	FastFare	BV-0001 & BV-0002	Fast Fare - Bill validator BV2
12	FastFare	C28330-0004	Fast Fare - main control board
13	FastFare	C28330-0003	Fast Fare - main control board

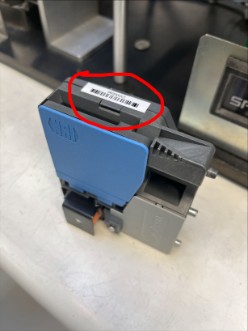

14	FastFare	D28564-xxxx	Fast Fare - coin validator		CV030090
15	FastFare	C26297-0002	Fast Fare - Smartcard board		NCR 61105

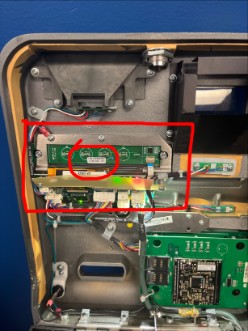

16	FastFare	D28483-0001	Fast Fare - Cap touch board		NTB010062
17	FastFare		Fast Fare - display screen board
18	FastFare	A29140-0002	Fast Fare - Swipe card reader		SR 036688
19	FastFare	B28646-0002	Fast Fare - barcode reader		NBS 1162
20	FastFare	C01855-0003	Electronic Key with battery pack
21	FastFare	B21455-0001	Fast Fare - Data port board		NIR71513
22	FastFare	D18631-0003 D18631-0008	Fast Fare - cashbox CBID V2		CB 128874

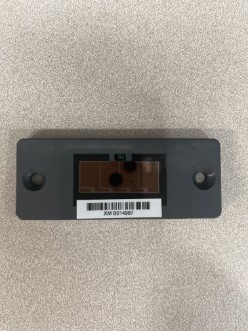

23	FastFare	B27928-0001	Fast Fare - Cashbox Transponder CBID-V2		XM B014987

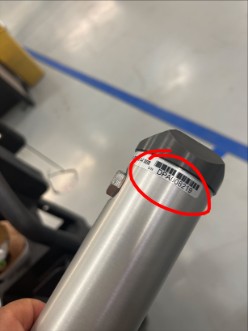

24	FastFare	C00133-0008	Data Probe complete		DPA008219

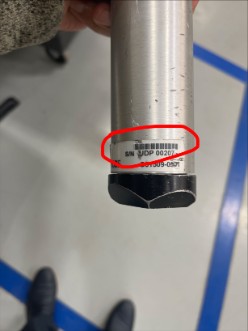

25	FastFare	C31509-0001	Universal data probe		UDP 00207
26	FastFareOdyssey	D22192-0001 & -0007	Odyssey & Fast fare Trim - (Full assembly)		TR 72486
27	Odyssey	D22854-0001	Odyssey Simulator Assembly		OS002387

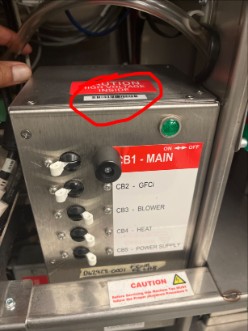

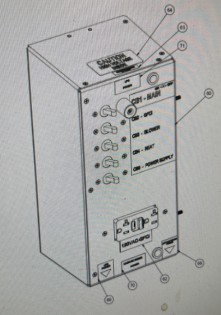

28	TVM	D26928-0001	TVM circuit breaker box		VCB02925
29	TVM	D25632-0001	Bent coin return selinoid

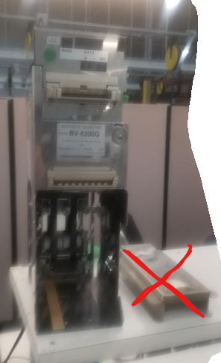

30	TVM	D26713-0001	Bill mechanism (mech)		VBM02259		Do not send the base of the Bill mechanism, only send the top.
31	TVM	D26814-0002	TVM door component interface		MDI200628

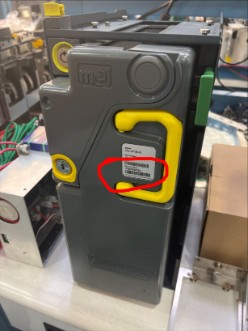

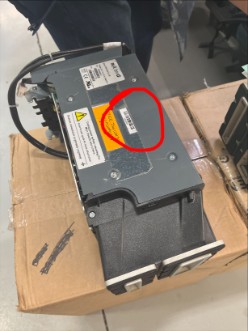

32	TVM	C30232-0001	MEI Bill validator		VBM02999

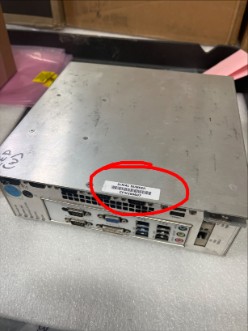

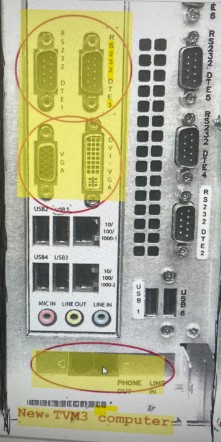

33	TVM	D27551-0001	Computer TVM3		SPG2010031301938

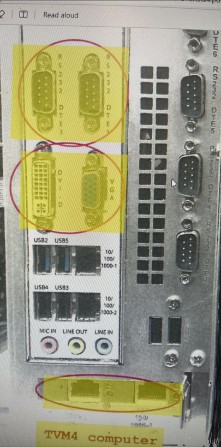

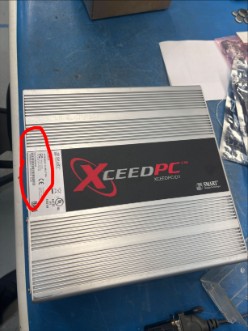

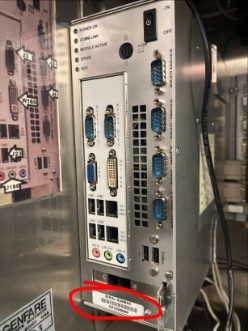

34	TVM	C29823-0001	Computer TVM4		CPU200687
35	TVM	C28171-0001	Computer TVM3		CPU200060
36	TVM		TVM smart card supplier		TR 69727

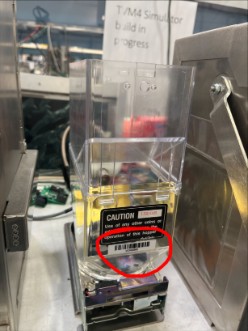

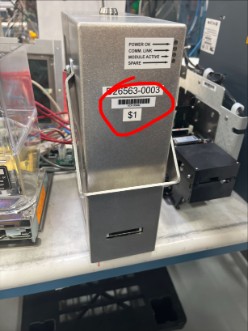

37	TVM	D26563-0003	TVM coin hopper		VCH 05800
38	TVM	D26563-0003	Coin hopper		VCH02662

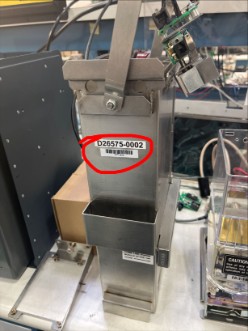

39	TVM	D26575-0002	TVM coin hopper		VCT 3648
40	TVM	951 165001	TVM cash box		37890090782

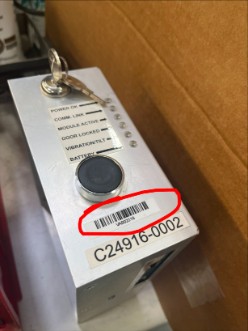

41	TVM	C24916-0002	TVM alarm box		VAB02218
42	TVM	D26828-0001	TVM media board		MCF150074
43	TVM	D26785-0001	TVM power distribution board TVM4		MPD300574

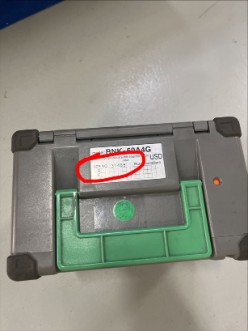

44	TVM	C24351-001A	Banknote box		31488
45	TVM		Smartcard reader		VSM02002

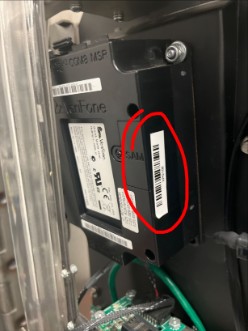

46	TVM		TVM pinpad		VPI2106

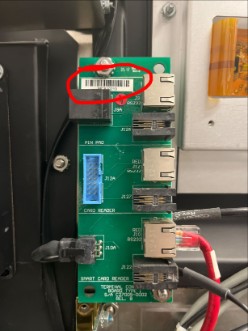

47	TVM	C27005-001	TVM terminal converter		MCA10213
48	TVM	A29770-001	Fan audio connect board		MFA150385
49	TVM		Universal sensor board		MUS151984
50	TVM	C28702	TVM magnetic swipe reader board		VCA02570
51
52		D18630	Fast Fare - cashbox short CBID V2
53		B27929-0001	Fast Fare - Cashbox Transceiver CBID-V2		XR B003262
54
55		D03798-0001	Fast Fare - Cashbox Transmitter		XMS09154

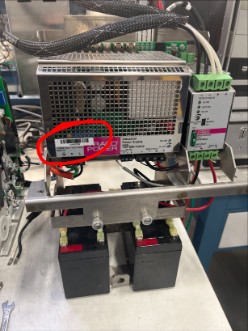

56			TVM Power supply		VUP02339
57		D23888-0004	TVM trim unit		TR055557

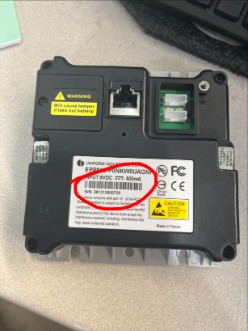

58		A29623-0004	TVM pinpad		261210800705
